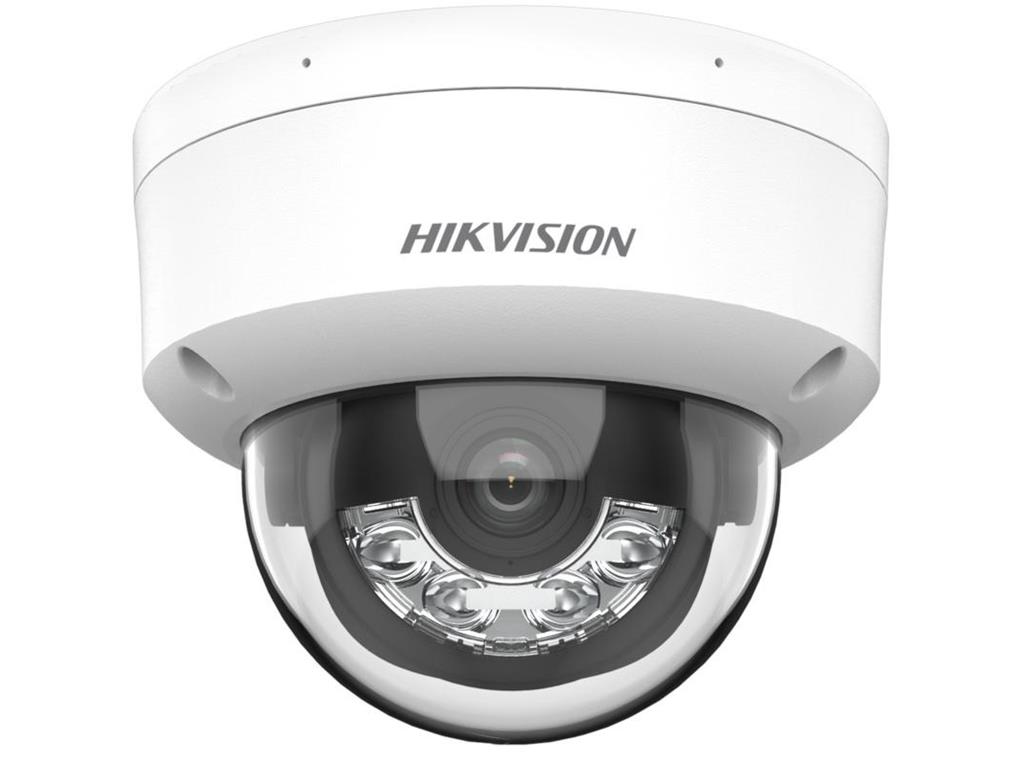

CAMERA IP 2MP DOME HIKVISION DS-2CD1121G2-LIU(2.8MM) RTMP
Câmera DOME DE VERDADE em forma de cúpula (semiesférica)
Sensor de imagem
1/2.9" Progressive Scan CMOS
Resolução máx.
1920 × 1080
Iluminação mínima
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Tempo do obturador
1/3 s to 1/100,000 s
Dia e noite
IR cut filter
Ajuste de Ângulo
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lentes
Tipo de lente
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 80°, vertical FOV 44°, diagonal FOV 94°
Montagem da lente
M12
Iris Type
Fixed
Abertura
F2.2
DORI
DORI
2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 55 m, O: 22 m, R: 11 m, I: 5 m
luminador
Tipo de luz suplementar
IR,White Light
Faixa de luz suplementar
IR: up to 20 m
White Light: up to 15 m
Luz complementar inteligente
Yes
IR Wavelength
850 nm
Vídeo
Convencional
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Subfluxo
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Compressão de vídeo
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Taxa de bits de vídeo
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Controle da taxa de bits
CBR,VBR
Região de interesse (ROI)
1 fixed region for main stream
Áudio
Tipo de áudio
Mono sound
Taxa de bits de áudio
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Filtragem de ruído ambiente
Yes
Taxa de amostragem de áudio
8 kHz/16 kHz
Compressão de áudio
G.711ulaw/AAC-LC
Rede
API
Open Network Video Interface (Profile S, Profile T, Profile G (-F model supports)),ISAPI,SDK
Segurança
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Visualização ao vivo simultânea
Up to 6 channels
Protocolos
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP,NTP, IGMP, IPv4, IPv6, UDP, QoS
Usuário/Host
Up to 32 users
3 user levels: administrator, operator, and user
Client
iVMS-4200,Hik-Connect
Navegador da web
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imagem
Ampla Faixa Dinâmica (WDR)
Digital WDR
SNR
= 52 dB
Switch Dia/Noite
Day,Night,Auto,Schedule
Aprimoramento da imagem
BLC,HLC,3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Máscara de privacidade
1 programmable polygon privacy mask
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Armazenamento a bordo
-F model: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Microfone integrado
Yes,1 built-in microphone
Reset Key
-F model supports
Evento
Eventos básicos
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Upload to memory card (-F model supports), send email, notify surveillance center, trigger recording (-F model supports), trigger capture
Geral
Alimentação
12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
Material
Plastic
Dimensões
Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Dimensões do pacote
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Peso
Approx. 600 g (1.2 lb.)
Com peso do pacote
Approx. 790 g (1.7 lb.)
Condições de armazenamento
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Condições de inicialização e operação
-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Idioma
English, Ukrainian
Função geral
Heartbeat,anti-banding,mirror,password protection,password reset via email
Aprovação
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
KC: KN32: 2015, KN35: 2015
Segurança
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Ambiente
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
